产品名称：MB系列
所属分类：锁紧垫圈
发布时间：2020-11-09
浏览次数：85
137-7019-8593

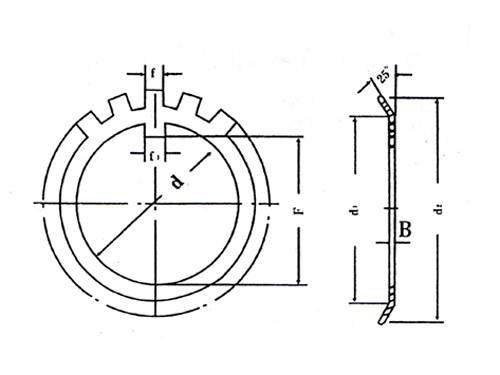

item No. | D | Weight
/100pcs |
d | d1 | d2 | F | B | f | f1 |
MB0
MB1
MB2 | 10
12
15 | 13.5
17
21 | 21
25
28 | 8.5
10.5
13.5 | 1
1
1 | 3
3
4 | 3
3
4 | 0.131
0.20
0.26 |
MB3
MB4
MB5 | 17
20
25 | 24
26
32 | 32
36
42 | 15.5
18.5
23 | 1
1
1.25 | 4
4
5 | 4
4
5 | 0.32
0.35
0.64 |
MB6
MB7
MB8 | 30
35
40 | 38
44
50 | 49
57
62 | 27.5
32.5
37.5 | 1.25
1.25
1.25 | 5
5
6 | 5
6
6 | 0.78
1.05
1.24 |
MB9
MB10
MB11 | 45
50
55 | 56
61
67 | 69
74
81 | 42.5
47.5
52.5 | 1.25
1.25
1.5 | 6
6
7 | 6
6
8 | 1.52
1.60
1.96 |
MB12
MB13
MB14 | 60
65
70 | 73
79
85 | 86
92
98 | 57.5
62.5
66.5 | 1.5
1.5
1.5 | 7
7
8 | 8
8
8 | 2.53
2.90
3.34 |
MB15
MB16
MB17 | 75
80
85 | 90
95
102 | 104
112
119 | 71.5
76.5
81.5 | 1.5
1.8
1.8 | 8
8
8 | 8
10
10 | 3.56
4.65
5.24 |
MB18
MB19
MB20 | 90
95
100 | 108
113
120 | 126
133
142 | 86.5
91.5
142 | 1.8
1.8
1.8 | 10
10
10 | 10
10
12 | 6.10
6.70
7.65 |
MB21
MB22
MB23 | 105
110
115 | 126
133
137 | 145
154
159 | 100.5
105.5
110.5 | 1.8
1.8
2 | 12
12
12 | 12
12
12 | 8.26
9.40
10.30 |
MBL24
MB24
MB25 | 120
120
125 | 135
138
148 | 152
164
170 | 115
115
120 | 2
2
2 | 12
12
12 | 14
14
14 | 7.00
10.50
11.80 |
MBL26
MB26
MB27 | 130
130
135 | 145
149
160 | 161
175
180 | 125
125
130 | 2
2
2 | 12
12
14 | 14
14
14 | 8.00
11.80
14.40 |
MBL28
MB28
MB29 | 140
140
145 | 155
160
172 | 172
192
202 | 135
135
140 | 2
2
2 | 14
14
14 | 16
16
16 | 9.00
14.40
16.80 |
MBL30
MB30
MB31 | 150
150
155 | 170
171
182 | 189
205
212 | 145
145
147.5 | 2
2
2.5 | 14
14
16 | 16
16
16 | 10.00
15.50
20.90 |
MBL32
MB32
MB33 | 160
160
165 | 180
182
193 | 199
217
222 | 154
154
157.5 | 2.5
2.5
2.5 | 16
16
16 | 18
18
18 | 14.00
22.20
24.10 |
MBL34
MB34
MBL36 | 170
170
180 | 190
193
200 | 211
232
222 | 164
164
174 | 2.5
2.5
2.5 | 16
16
18 | 18
18
20 | 15.00
24.80
16.00 |
MB36
MBL38
MB38 | 180
190
190 | 203
210
214 | 242
232
252 | 174
184
184 | 2.5
2.5
2.5 | 18
18
18 | 20
20
20 | 25.80
17.80
27.80 |
MBL40
MB40
MB44 | 200
200
220 | 222
226
250 | 245
262
292 | 194
194
213 | 2.5
2.5
3 | 18
18
20 | 20
20
24 | 22.00
29.30
35.00 |
MB48
MB52
MB56 | 240
260
280 | 270
300
320 | 312
342
362 | 233
253
273 | 3
3
3 | 20
24
24 | 24
28
28 | 45.00
60.00
62.40 |
